ABC DRY POWDER

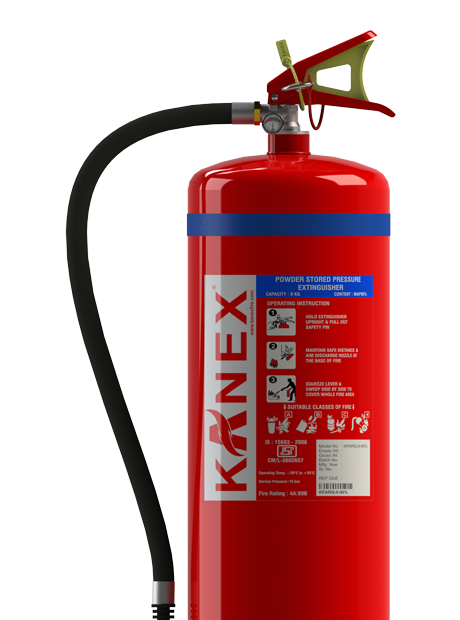

ABC MAP 90 Based Portable Stored Pressure Fire Extinguishers (RQ Series)

KANEX Powder Stored Pressure RQ series Fire Extinguishers are specially designed for high performance, simple method of operation and to achieve rapid Fire knock down capability for protection of light, ordinary and high hazards. These compact and portable extinguishers are suited for industrial, commercial and Domestic Fire protection needs.

Available in Kg
Buy Online Buy on Amazon

Powder Stored Pressure RQ series Fire Extinguishers filled with specially fluidized and siliconized Mono Ammonium Phosphate dry chemical with MAP 90% as per standard requirements of IS 14609. It chemically insulates Class A fires by melting at approximately 350°F and coats surface to which it is applied. It smothers and breaks the chain reaction of Class B fires and will not conduct electricity back to the operator.

APPLICATION AREA

Special Features

Good quality MAP 90% powder capable of fighting class A,B,C & Electrical fires
Unique gauge testing system (UGTS) mechanism
Brass chrome plated valve
Internally Epoxy polyester and externally pure polyester powder coating
Best available Fire ratings in its class.
Latest BIS approved – (IS 15683:2006) and ISI marked.
More flexible EPDM hose with less prone to cracks.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.

TECHNICAL SPECIFICATIONS

MODEL KFARQ-1- 90% MODEL KFARQ-1- 90%
Capacity 1 kg Service/Max. service/Test Pressure 15 / 18 / 35 bar
Design Nozzle Expelling Agent Nitrogen (UHP Grade)
Fire Rating (MAP 90% ) 1A:34B Full Weight (Approx.) 2 kg
Height (Approx.) 325 mm Empty Weight (Approx.) 1 kg
Diameter (Approx.) 86±10 mm Shipping Weight (Approx.) 2.1 kg
Average Discharge time 9 Sec. Packing Standard Inner- 13.75"X4.75"X4.75” Outer (5 in 1)- 16.5"X10"X10”
Average Range of throw 2 m Mounting Bracket Vehicle/Wall bracket
Average % Discharge 95% Approvals BIS
Operating Temperature -30 °C to +60 °C
ABC MAP 90 Portable Stored Fire Extinguishers
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFARQ 1 90%

Spare Parts Book

MSDS

MODEL KFARQ-2 - 90% MODEL KFARQ-2 - 90%
Capacity 2 kg Service/Max. service/Test Pressure 15 / 18 / 35 bar
Design Nozzle Expelling Agent Nitrogen (UHP Grade)
Fire Rating (MAP 90% ) 2A:55B Full Weight (Approx.) 3.4 kg
Height (Approx.) 380 mm Empty Weight (Approx.) 1.4 kg
Diameter (Approx.) 106±10 mm Shipping Weight (Approx.) 3.6 kg
Average Discharge time 14 Sec. Packing Standard Inner- 13.75"X4.75"X4.75” Outer (4 in 1)- 16.5"X10"X10”
Average Range of throw 2 m Mounting Bracket Vehicle/Wall bracket
Average % Discharge 95% Approvals BIS
Operating Temperature -30 °C to +60 °C
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFARQ 2 90%

Spare Parts Book

MSDS

MODEL KFARQ-4 - 90% MODEL KFARQ-4 - 90%
Capacity 4 kg Service/Max. service/Test Pressure 15 / 18 / 35 bar
Design Hose & Nozzle Expelling Agent Nitrogen (UHP Grade)
Fire Rating (MAP 90% ) 4A:144B Full Weight (Approx.) 6.6 kg
Height (Approx.) 490 mm Empty Weight (Approx.) 2.6 kg
Diameter (Approx.) 140±10 mm Shipping Weight (Approx.) 7.0 kg
Average Discharge time 18 Sec. Packing Standard 2 in 1- 21"X6.75"X14.10”
Average Range of throw 3 m Mounting Bracket Wall bracket
Average % Discharge 95% Approvals BIS
Operating Temperature -30 °C to +60 °C
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFARQ 4 90%

Spare Parts Book

MSDS

MODEL KFARQ-6 - 90% MODEL KFARQ-6 - 90%
Capacity 6 kg Service/Max. service/Test Pressure 15 / 18 / 35 bar
Design Hose & Nozzle Expelling Agent Nitrogen (UHP Grade)
Fire Rating (MAP 90% ) 6A:183B Full Weight (Approx.) 8.9 kg
Height (Approx.) 530 mm Empty Weight (Approx.) 2.9 kg
Diameter (Approx.) 150±10 mm Shipping Weight (Approx.) 9.2 kg
Average Discharge time 24 Sec. Packing Standard 2 in 1- 21"X6.75"X14.10”
Average Range of throw 5 m Mounting Bracket Wall bracket
Average % Discharge 95% Approvals BIS
Operating Temperature -30 °C to +60 °C
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFARQ 6 90%

Spare Parts Book

MSDS

MODEL KFARQ-9 - 90% MODEL KFARQ-9 - 90%
Capacity 9 kg Service/Max. service/Test Pressure 15 / 18 / 35 bar
Design Hose & Nozzle Expelling Agent Nitrogen (UHP Grade)
Fire Rating (MAP 90% ) 6A:233B Full Weight (Approx.) 13.3 kg
Height (Approx.) 575 mm Empty Weight (Approx.) 4.3 kg
Diameter (Approx.) 180±10 mm Shipping Weight (Approx.) 13.6 kg
Average Discharge time 31 Sec. Packing Standard 1 in 1 - 24.5"X8.0"X8.0"
Average Range of throw 6 m Mounting Bracket Wall bracket
Average % Discharge 95% Approvals BIS
Operating Temperature -30 °C to +60 °C
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFARQ 9 90%

Spare Parts Book

MSDS
