Fire Extinguisher Box

An extinguisher box is a protective enclosure designed to store fire extinguishers safely while ensuring quick access in emergencies. Made from polypropylene material, it shields extinguishers from dust, moisture, and damage. These boxes come in various sizes as per function and may feature transparent panels for visibility, lockable options for security, or quick-release latches for easy access. Suitable for indoor and outdoor use, they are commonly found in workplace vehicles, factories, and public spaces to ensure fire safety compliance.

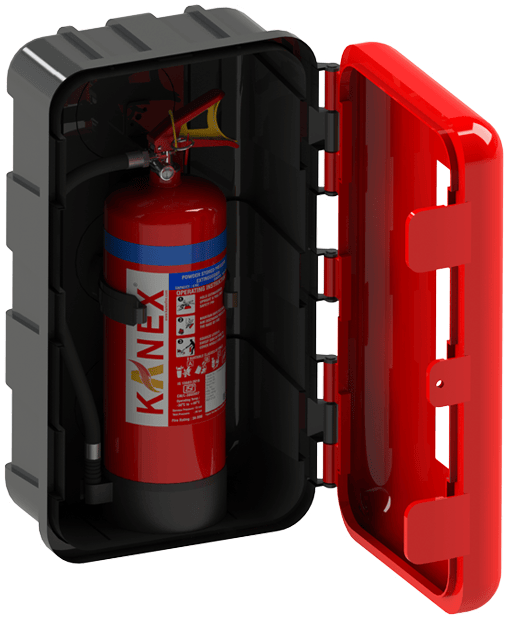

Fire extinguisher stored inside an open Kanex protective box for safety and visibility

Fire Extinguisher capacity

4 kg

6 kg

9 kg & CO2

Specifications

Made of polypropylene by injection moulding

Nylon clamping ring available in 2 sizes
(∅ 150/170 mm - ∅ 170/190 mm) and
PVC clamping spring with 4 attatchment points

Lockable or sealable

Optional Inspection window with "OR" seal

Internal PVC seal against water and dust ingress

Double ergonomic handle in nylon

Reinforced wall fixing piints for a safe mounting

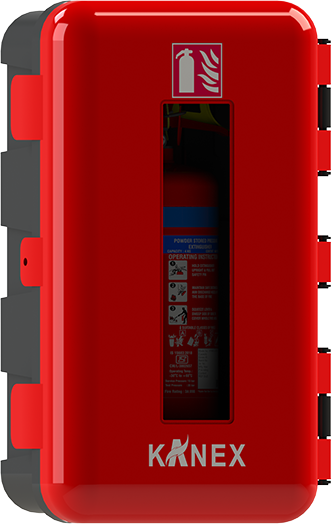

Closed Kanex fire extinguisher box with inspection window for emergency visibility

Key Features

Fire extinguisher box offering fire resistance capability for enhanced safety

Fire
Resistance

Fire extinguisher box resistant to extreme high and low temperatures

High/Low
Temperature

Fire extinguisher box with resistance to fuel and lubricant exposure

Fuel & lubrication
Resistance

Dust and waterproof fire extinguisher box for outdoor and industrial use

Dust &
Water Proof

Shock-proof fire extinguisher box icon ensuring protection from impact or jolt

Shock
Proof

Fire extinguisher box designed to resist vibrations during transport or operation

Vibration
Proof

Dimensions

CODE B513007 B513008 B513009
External Dimension LxHxD (MM) 335x620x240 335x620x240 335x620x240
Weight in (kg) 2.4 KG 2.7 KG 3.2 Kg
Fire Extinguisher capacity 4 kg 6 kg 9 kg & CO2
Colours Red Red Red

Download Technical
Specification

Brochure

Download Technical Specification

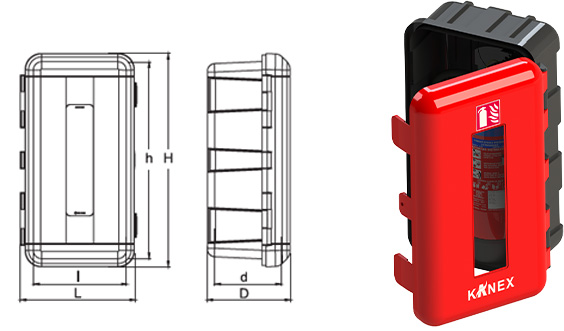

Technical drawing and 3D view of Kanex fire extinguisher box showing dimensions and design
