Pre-Engineered Commercial Kitchen Fire Suppression System

Rotarex (Brand Name: Firedetec) systems use a proprietary continuous linear sensor tube that reliably detects and actuates release of the extinguishing agent using pneumatic technology. It is more flexible, space efficient and cost effective versus alternative mechanical or electronic systems. It provides simple reliable protection for Kitchen hoods.

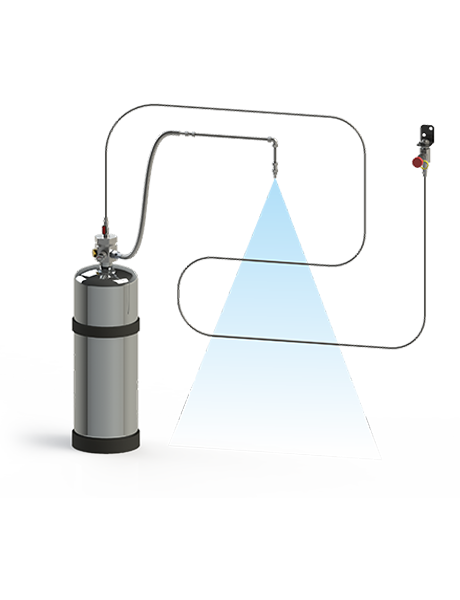

The flexible Fire Detection Tubing (FDT) is installed directly inside the extractor hood-directly above cooking areas. When a fire occurs, the point on the pressurized FDT nearest the heat source will burst at 175 deg C. The Sudden tube depressurization actuates the special pressure differential valve and instantly floods the cooking area with Class F extinguishing agent. The fire is quickly suppressed just moments after it began... minimizing damage and downtime.

Special Features

Very Fast, reliable fire detection with help of Clean agents
Easy/Flexible Installation
No electricity or moving parts
Highly economical

TECHNICAL SPECIFICATIONS

MODEL SPECIFICATIONS MODEL SPECIFICATIONS
Extinguishing Agent (Rotarex) Wet Chemical System Capacity 9 Ltr
Working Pressure* 16 bar Sensor Tube Grey
Sensor Tube Burst Temperature 175 deg C Cylinder SS
Valve Pi-Marking Cylinder Approvals* CE
System Approvals* LPCB Internal Diameter of Tube 4 mm
Outer Diameter of Tube 6 mm Height of Cylinder Approx. 350 mm
Diameter of Cylinder 175 mm Operating Temperature 5 Deg C to 65 Deg C
Super pressurizing Agent Dry Nitrogen Cylinder Thickness 1.5 mm
