Water & Foam Fire Extinguisher

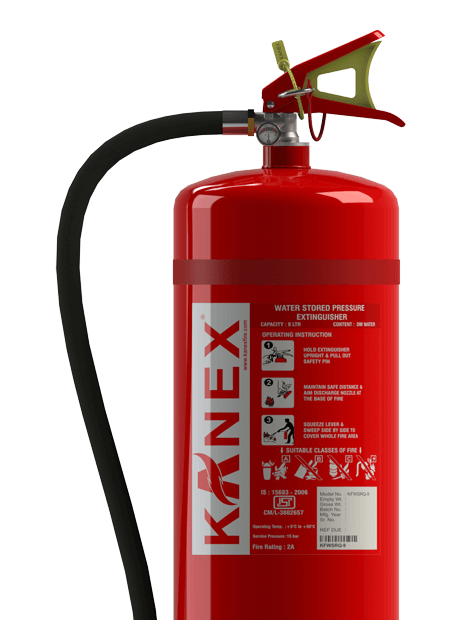

Water Based Stored Pressure Fire Extinguishers (RQ Series)

KANEX Water Cartridge operated Fire Extinguishers are designed to suppress fires in Class A combustibles like wood, cloth, trash and other materials that leave an ash. These kinds of hazards are often found in office environments and some industrial locations, as well as warehouse and oxidizing chemical storage areas.

Available in Kg
Buy on Amazon

APPLICATION AREA

Special Features

RO Processed / Distilled water.
Manufactured of durable high quality materials.
Certifications: BIS Approved (IS 15683:2006) & CE certified (will be marked on demand).
High quality corrosion resistant and impact resistant Pure Polyester (PP) powder coating externally.
Plastic Lining done internally.
CO2 gas cartridges confirmed to IS 4947.
Tough Exterior and interior Coating with Pure Polyester (PP) powder.
Controlled discharge through Brass nickel plated Valve with squeeze operation.
Plastic bottom cases.
EPDM hose.
Large loop Stainless steel Pull pin.
Extinguisher shells are 100% factory hydro tested to excess of 35 bar.
Easy as well more economical to maintain, service and re chargeable.
Bar coded labels.

TECHNICAL SPECIFICATIONS

MODEL KFWSRQ-6 MODEL KFWSRQ-6
Capacity 6 Ltr Design Hose & Nozzle
Fire Rating 2A* Height (Approx.) 530 mm
Diameter (Approx.) 150±10 mm Average Discharge time 22 Sec.
Average Range of throw 5 m Average % Discharge 95%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 9.3 kg
Empty Weight (Approx.) 3.3 kg Shipping Weight (Approx.) 9.6 kg
Packing Standard 2 in 1- 22.5"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals -
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KFWSRQ-9 MODEL KFWSRQ-9
Capacity 9 Ltr Design Hose & Nozzle
Fire Rating 3A Height (Approx.) 575 mm
Diameter (Approx.) 180±10 mm Average Discharge time 31 Sec.
Average Range of throw 6 m Average % Discharge 95%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 14.0 kg
Empty Weight (Approx.) 5.0 kg Shipping Weight (Approx.) 14.5 kg
Packing Standard 2 in 1- 24.75"X8"X8” Mounting Bracket Wall bracket
Approvals BIS
