Water & Foam Fire Extinguisher

High Quality Water Based Stored Pressure Fire Extinguishers SS

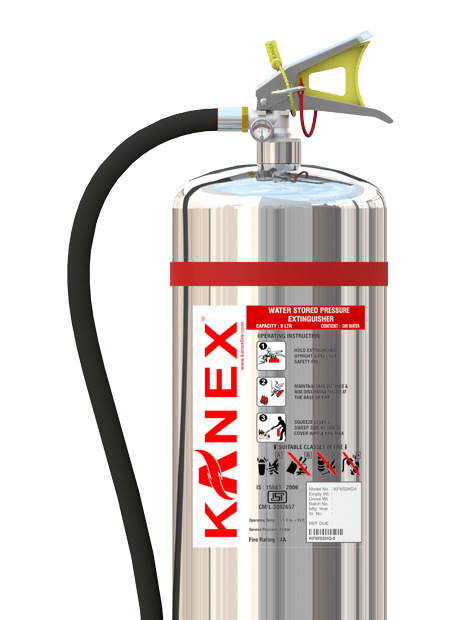

KANEX Water Stored Pressure Fire Extinguishers Body made up of Stainless Steel Smooth Finish which gives an aesthetic impression and are designed to suppress fires in Class A combustibles like wood, cloth, trash and other materials that leave an ash. These kinds of hazards are often found in office environments and some industrial locations, as well as warehouse and oxidizing chemical storage areas.

Available in Kg
Buy on Amazon

APPLICATION AREA

Special Features

RO processed water.
Unique gauge testing system (UGTS) mechanism
CE marked, brass chrome plated valve.
Smooth finish SS body gives aesthetic impression.
Helium Leak detection tested for leakage, leak rate upto 1X10-8 mbar.l/sec.
Latest BIS approved – (IS 15683:2006), ISI marked and CE marked.
Tamper seal to detect any mishandling.
Stainless steel anti corrosive body.
Large loop stainless Pull pin.
More flexible EPDM hose.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.
Best available Fire ratings in its class with 5 years warranty.

TECHNICAL SPECIFICATIONS

MODEL KFWSSHQ-6 MODEL KFWSSHQ-6
Capacity 6 Ltr Design Hose & Nozzle
Fire Rating 2A* Height (Approx.) 530 mm
Diameter (Approx.) 150±10 mm Average Discharge time 22 Sec.
Average Range of throw 5 m Average % Discharge 96%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 8.7 kg
Empty Weight (Approx.) 2.7 kg Shipping Weight (Approx.) 9.1 kg
Packing Standard 2 in 1- 22.5"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KFWSSHQ-9 MODEL KFWSSHQ-9
Capacity 9 Ltr Design Hose & Nozzle
Fire Rating 4A Height (Approx.) 575 mm
Diameter (Approx.) 180±10 mm Average Discharge time 31 Sec.
Average Range of throw 6 m Average % Discharge 97%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 13.3 kg
Empty Weight (Approx.) 4.3 kg Shipping Weight (Approx.) 13.8 kg
Packing Standard 2 in 1- 21"X8"X8” Mounting Bracket Wall bracket
Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS
