SPECIAL APPLICATION FIRE EXTINGUISHERS

Monnex Type Cartridge

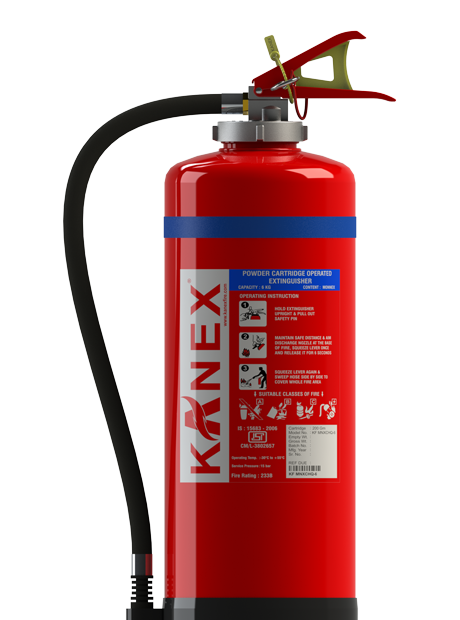

KANEX Cartridge Operated Monnex Powder or Potassium bi carbonate Urea complex dry powder Fire Extinguishers are Characterized by their high performance, simple method of operation and rapid Fire knock down capability. Fire Extinguishers are specially designed for high performance and to achieve rapid Fire knock down capability. Cartridge-operated means increased reliability, on-the-spot recharge, ease of service, and superior performance. These extinguishers contain a special Monnex Powder or Potassium bi carbonate Urea complex based dry chemical with free flowing and non-caking additives. It is very much effective against Class B & C fire. This chemical smothers fires in flammable liquids and pressurized gases.

APPLICATION AREA

Special Features

Monnex or potassium bi carbonate urea based BC powder
Co2 gas cylinder confirms to IS: 4947.
Brass chrome plated valve
Internally Epoxy polyester and externally pure polyester powder coating
CE certified
More flexible EPDM hose with less prone to cracks.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.

TECHNICAL SPECIFICATIONS

MODEL KFMNXCHQ-4 MODEL KFMNXCHQ-4
Capacity 4 kg / 2 kg Design Hose & Nozzle
Fire Rating 183B* Height (Approx.) 510 mm
Diameter (Approx.) 140±5 mm Average Discharge time 16 Sec.
Average Range of throw 5 m Average % Discharge 92%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent CO2 Gas Full Weight (Approx.) 6.8 kg
Empty Weight (Approx.) 4.8 kg Shipping Weight (Approx.) 7.2 kg
Packing Standard 2 in 1-21"*6.75"*14.10" Mounting Bracket Wall bracket
Approvals BIS & CE CO2 Cartridge Capacity 120 gm
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

MODEL KFMNXCHQ-6 MODEL KFMNXCHQ-6
Capacity 6 kg / 4 kg Design Hose & Nozzle
Fire Rating 183B* Height (Approx.) 540 mm
Diameter (Approx.) 150±5 mm Average Discharge time 21 Sec.
Average Range of throw 6 m Average % Discharge 93%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent CO2 Gas Full Weight (Approx.) 9.1 kg
Empty Weight (Approx.) 5.1 kg Shipping Weight (Approx.) 9.5 kg
Packing Standard 2 in 1-21"*6.75"*14.10" Mounting Bracket Wall bracket
Approvals BIS & CE CO2 Cartridge Capacity 200 gm
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

MODEL KFMNXCHQ-9 MODEL KFMNXCHQ-9
Capacity 9 kg / 6 kg Design Hose & Nozzle
Fire Rating 233B* Height (Approx.) 585 mm
Diameter (Approx.) 180±5 mm Average Discharge time 26 Sec.
Average Range of throw 6 m Average % Discharge 93%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent CO2 Gas Full Weight (Approx.) 12.9 kg
Empty Weight (Approx.) 6.9 kg Shipping Weight (Approx.) 13.4 kg
Packing Standard 2 in 1-24.5"*8.0"*8.0" Mounting Bracket Wall bracket
Approvals BIS & CE CO2 Cartridge Capacity 200 gm
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure
