ABC DRY POWDER

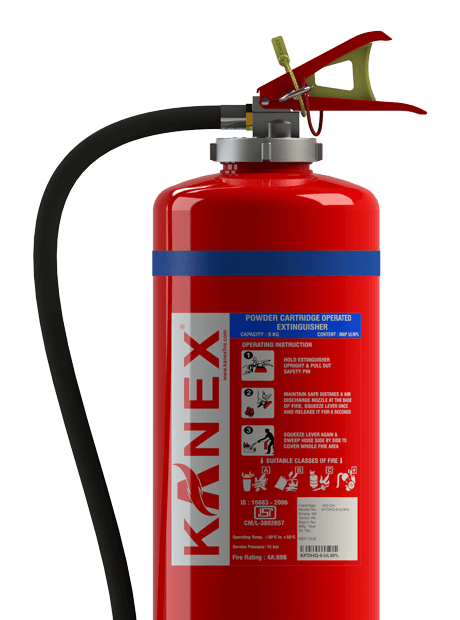

High Quality ABC MAP 90 Based Cartridge Operated Fire Extinguishers

KANEX Dry Chemical Powder Cartridge Operated Fire Extinguishers are specially designed for high performance and to achieve rapid Fire knock down capability. Cartridge-operated means increased reliability, on-the-spot recharge, ease of service, and superior performance.  These portable extinguishers are suited for industrial, commercial and Domestic Fire protection needs.

Available in Kg
Buy Online

Dry Powder Cartridge Operated Fire Extinguishers filled with specially fluidized and siliconized UL listed mono ammonium phosphate dry chemical with MAP 90% as per standard requirements. It chemically insulates Class A fires by melting at approximately 350°F and coats surface to which it is applied. It smothers and breaks the chain reaction of Class B fires and will not conduct electricity back to the operator.

APPLICATION AREA

Special Features

UL listed - MAP 90% powder capable of fighting class A,B,C & Electrical fires.
CE marked , brass chrome plated valve
Co2 gas cylinder confirms to IS: 4947.
Internally Epoxy polyester and externally pure polyester powder coating
Best available Fire ratings in its class with 5 years warranty.
Helium Leak detection tested for leakage, leak rate upto 1X10-8 mbar.l/sec.
Welding Procedure approved by TPI with 6G.
Latest BIS approved – (IS 15683:2006), ISI marked and CE marked.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
More flexible EPDM hose.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.

TECHNICAL SPECIFICATIONS

MODEL KFDHQ-4-UL90% MODEL KFDHQ-4-UL90%
Capacity 4 kg Service/Max. service/Test Pressure 15 / 17 / 35 bar
Design Hose & Nozzle Expelling Agent Co2 gas
Fire Rating 3A:55B Co2 gas cartridge 120 gm
Height (Approx.) 510 mm Full Weight (Approx.) 8 kg
Diameter (Approx.) 140±10 mm Empty Weight (Approx.) 4 kg
Average Discharge time 15 Sec. Shipping Weight (Approx.) 8.3 kg
Average Range of throw 4 m Packing Standard 2 in 1- 21"X6.75"X14.10”
Average % Discharge 95% Mounting Bracket Wall bracket
Operating Temperature -30 °C to +60 °C Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KFDHQ-6-UL90% MODEL KFDHQ-6-UL90%
Capacity 6 kg Service/Max. service/Test Pressure 15 / 17 / 35 bar
Design Hose & Nozzle Expelling Agent Co2 gas
Fire Rating 4A:144B Co2 gas cartridge 120 gm
Height (Approx.) 540 mm Full Weight (Approx.) 10.3 kg
Diameter (Approx.) 150±10 mm Empty Weight (Approx.) 4.3 kg
Average Discharge time 20 Sec. Shipping Weight (Approx.) 10.6 kg
Average Range of throw 4.5 m Packing Standard 2 in 1- 22.5"X6.75"X14.10”
Average % Discharge 95% Mounting Bracket Wall bracket
Operating Temperature -30 °C to +60 °C Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

GAD

GTP

Spare Parts Book

MSDS

MODEL KFDHQ-9-UL90% MODEL KFDHQ-9-UL90%
Capacity 9 kg Service/Max. service/Test Pressure 15 / 17 / 35 bar
Design Hose & Nozzle Expelling Agent Co2 gas
Fire Rating 6A:183B Co2 gas cartridge 200 gm
Height (Approx.) 585 mm Full Weight (Approx.) 15.3 kg
Diameter (Approx.) 180±10 mm Empty Weight (Approx.) 6.3 kg
Average Discharge time 30 Sec. Shipping Weight (Approx.) 15.8 kg
Average Range of throw 5 m Packing Standard 2 in 1 - 24.5"X15.3.0"X8.0"
Average % Discharge 95% Mounting Bracket Wall bracket
Operating Temperature -30 °C to +60 °C Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

GAD

GTP

Spare Parts Book

MSDS
