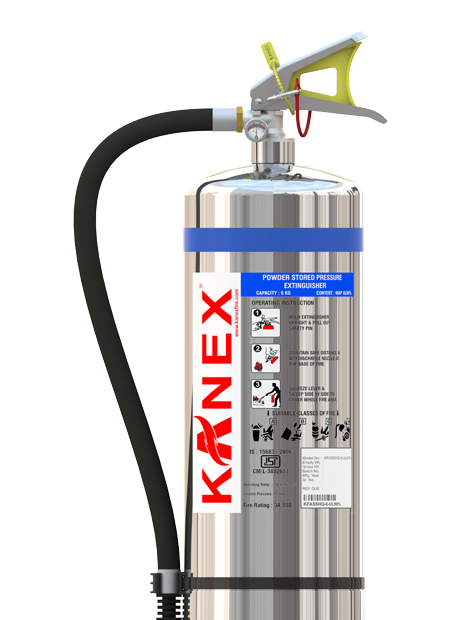

KANEX Powder Stored Pressure HQ series Fire Extinguishers are specially designed for high performance, simple method of operation and to achieve rapid Fire knock down capability for protection of light, ordinary and high hazards. These compact and portable extinguishers are suited for industrial, commercial and Domestic Fire protection needs.
Powder Stored Pressure HQ series Fire Extinguishers filled with specially fluidized and siliconized UL listed Mono Ammonium Phosphate dry chemical with MAP UL 90% / MAP 90% as per standard requirements. It chemically insulates Class A fires by melting at approximately 350°F and coats surface to which it is applied. It smothers and breaks the chain reaction of Class B fires and will not conduct electricity back to the operator.
| MODEL | KFASSHQ-2-UL90% KFASSHQ-2-90% |
MODEL | KFASSHQ-2-UL90% KFASSHQ-2-90% |
|---|---|---|---|
| Capacity | 2 kg | Service/Max. service/Test Pressure | 15 / 17 / 35 bar |
| Design | Nozzle | Expelling Agent | Nitrogen (UHP Grade) |
| Fire Rating | 3A:55B | Full Weight (Approx.) | 3.6 kg |
| Height (Approx.) | 440 mm | Empty Weight (Approx.) | 1.6 kg |
| Diameter (Approx.) | 100±10 mm | Shipping Weight (Approx.) | 3.7 kg |
| Average Discharge time | 14 Sec. | Packing Standard | 2 in 1- 21"X6.75"X14.10” |
| Average Range of throw | 2 m | Mounting Bracket | Wall bracket |
| Average % Discharge | 93% | Approvals | BIS & CE |
| Operating Temperature | -30 °C to +60 °C |
| MODEL | KFASSHQ-4-UL90% KFASSHQ-4-90% |
MODEL | KFASSHQ-4-UL90% KFASSHQ-4-90% |
|---|---|---|---|
| Capacity | 4 kg | Service/Max. service/Test Pressure | 15 / 17 / 35 bar |
| Design | Hose & Nozzle | Expelling Agent | Nitrogen (UHP Grade) |
| Fire Rating | 4A:144B | Full Weight (Approx.) | 6.4 kg |
| Height (Approx.) | 500 mm | Empty Weight (Approx.) | 2.4 kg |
| Diameter (Approx.) | 140±10 mm | Shipping Weight (Approx.) | 6.7 kg |
| Average Discharge time | 18 Sec. | Packing Standard | 2 in 1- 21"X6.75"X14.10” |
| Average Range of throw | 3 m | Mounting Bracket | Wall bracket |
| Average % Discharge | 92% | Approvals | BIS & CE |
| Operating Temperature | -30 °C to +60 °C |
| MODEL | KFASSHQ-6-UL90% KFASSHQ-6-90% |
MODEL | KFASSHQ-6-UL90% KFASSHQ-6-90% |
|---|---|---|---|
| Capacity | 6 kg | Service/Max. service/Test Pressure | 15 / 17 / 35 bar |
| Design | Hose & Nozzle | Expelling Agent | Nitrogen (UHP Grade) |
| Fire Rating | 6A:183B | Full Weight (Approx.) | 8.7 kg |
| Height (Approx.) | 550 mm | Empty Weight (Approx.) | 2.7 kg |
| Diameter (Approx.) | 150±10 mm | Shipping Weight (Approx.) | 9.1 kg |
| Average Discharge time | 24 Sec. | Packing Standard | 2 in 1- 22.5"X6.75"X14.10” |
| Average Range of throw | 5 m | Mounting Bracket | Wall bracket |
| Average % Discharge | 93% | Approvals | BIS & CE |
| Operating Temperature | -30 °C to +60 °C |
