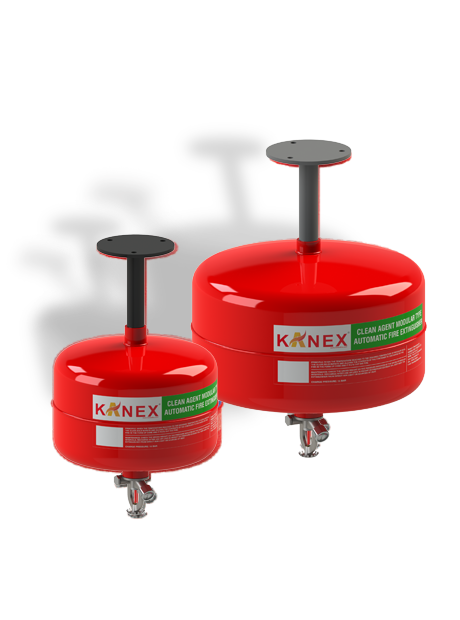

Automatic Modular
Fire Extinguisher

(Clean Agent Type Fk 5-1-2 Fluoroketone)

Kanex's Fluoro Ketone (FK) Clean Agent Fire Extinguishers offers great performance and reliability. The cleanest and most powerful agent with zero ODP (Ozone Depletion Potential) and lowest GWP available. These extinguishers can be used on sensitive equipment as it doesn't leave any residue. Hence, this non-residue forming extinguisher is not only eco-friendly but also perfect for electrical equipment and even flammable liquids.

Available in Kg

APPLICATION AREA

Computer Centers Icon Office
Computer Centers Icon Data/Document
Storage Areas
Aircrafts Icon Aircrafts
Warehouses Icon Boats
Warehouses Icon Laboratories

Special Features

Hydraulically tested as per standard and passed through anti-corrosive treatment
An Automatic Detection and Suppression System together in a single unit quite unlike any other system available in the market CE marked, brass chrome plated valve with Controllable discharge mechanism and Large loop Stainless steel Pull pin
Automatic operation, hence no human involvement, reducing the chances of injury and accidents to virtually zero
Proves to be the most economical when compared to other systems
Reusable cylinder as it is not based on aerosol technology. Hence, most economical
Non-Freezing & long lasting
Provides securities in case of emergencies and power failure without power backup
Rechargeable and easy to service
Extinguishing medium is Clean agent HFC236fa/FE-36/FK 5-1-12.

TECHNICAL SPECIFICATIONS

MODEL KMCSSRQ-2-FK MODEL KMCSSRQ-2-FK
Capacity 2 kg Design Ceiling Mounted
Height (Approx.) 370 mm Approx. Diameter (Approx.) 150±10 mm
Average Discharge Time 4-5 Sec Approx Hanging Height Above Risk 1.5 Mtr
Area Protection 1-1.5 m² Volume Protection 2.5 m³ Approx
Average % Discharge 95% Operating Temperature -30°C to +60°C
Service/Test Pressure 15 / 35 bar Expelling Agent Nitrogen (UHP grade)
Full Weight (Approx.) 3.56 kg Empty Weight (Approx.) 1.56 kg
Shipping Weight (Approx.) 3.75 kg Mounting Bracket Ceiling Mounting Stand
DCP SBC Based Portable Pressure Fire Extinguishers
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

MODEL KMCSSRQ-5-FK MODEL KMCSSRQ-5-FK
Capacity 5 kg Design Ceiling Mounted
Height (Approx.) 380 mm Approx. Diameter (Approx.) 230±10 mm
Average Discharge Time 6-8 Sec Approx Hanging Height Above Risk 1.5 - 2 Mtr
Area Protection 2 - 2.5 m² Volume Protection 6 m³ Approx
Average % Discharge 95% Operating Temperature -30°C to +60°C
Service/Test Pressure 15 / 35 bar Expelling Agent Nitrogen (UHP grade)
Full Weight (Approx.) 7.64 kg Empty Weight (Approx.) 2.64 kg
Shipping Weight (Approx.) 7.8 kg Mounting Bracket Ceiling Mounting Stand
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

MODEL KMCSSRQ-10-FK MODEL KMCSSRQ-10-FK
Capacity 10 kg Design Ceiling Mounted
Height (Approx.) 405 mm Approx Diameter (Approx.) 300±10 mm
Average Discharge Time 10-15 Sec Approx Hanging Height Above Risk 1.75 - 2.25 Mtr
Area Protection 4 to 5 m² Volume Protection 10 m³ Approx.
Average % Discharge 95% Operating Temperature -30°C to +60°C
Service/Test Pressure 15 / 35 bar Expelling Agent Nitrogen (UHP grade)
Full Weight (Approx.) 14.11 kg Empty Weight (Approx.) 4.11 kg
Shipping Weight (Approx.) 14.5 kg Mounting Bracket Ceiling Mounting Stand
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure
