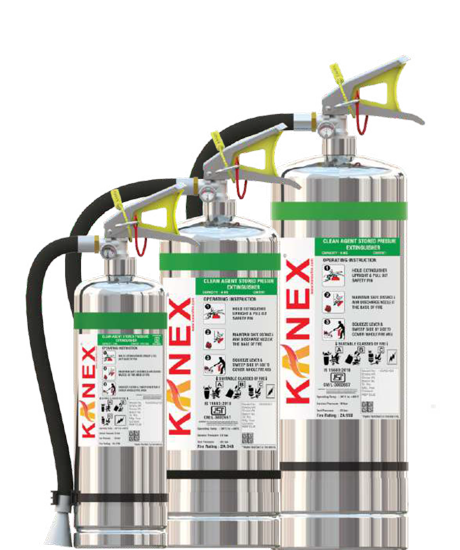

Clean Agent SS Body
Fire Extinguisher

(Fk 5-1-2 Fluoroketone Based Portable Stored Pressure)

Kanex's Clean Agent Fire Extinguishers offers great performance and reliability. The cleanest and most powerful agent with zero ODP (Ozone Depletion Potential) and lowest GWP available. These extinguishers can be used on sensitive equipment as it doesn't leave any residue. Hence, this non-residue forming extinguisher is not only eco-friendly but also perfect for electrical equipment and even flammable liquids.

Available in Kg

APPLICATION AREA

Computer Centers Icon Office
Computer Centers Icon Data/Document
Storage Areas
Aircrafts Icon Aircrafts
Warehouses Icon Boats
Warehouses Icon Laboratories

Special Features

For Class A/B/C and electrical Fire.
Evaporates quickly and leaves no residue.
Rapidly extinguishes fires, minimizing damage and downtime in critical areas.
Low ozone depletion potential (ODP)
Low global warming potential (GWP).
BIS Approved and ISI marked.
Smooth Finish stainless steel body to give aesthetic impression
UV Resistant High Quality Pure Polyester (PP) powder
coating.
Unique Gauge Testing System (UGTS) mechanism
Helium Leak Detection- tested leak rate up to 1x10-8 mbar.l/sec
Easy to maintain, recharge & service.
Large loop Stainless Steel Pull pin.
Controllable discharge

TECHNICAL SPECIFICATIONS

MODEL KCASSHQ-2-FE36 MODEL KCASSHQ-2-FE36
Capacity 2 kg Design Hose & Nozzle
Fire Rating 1A : 21B Fire Rating (As per EN) 5A : 21B
Height (Approx.) 440 mm Approx Diameter (Approx.) 110±5 mm
Effective Discharge Time 9 Sec Average Range of throw 3 m
Average % Discharge 96% Operating Temperature -30 °C to +60°C
Service/Max. service/Test Pressure 10 / 12 / 35 bar Expelling Agent Nitrogen (UHP Grade)
Full Weight (Approx.) 3.6 kg Empty Weight (Approx.) 1.6 kg
Shipping Weight (Approx.) 4.0 kg Packing Standard Corrugated Box
Mounting Bracket Vehicle / Wall Bracket Approvals BIS & CE
DCP SBC Based Portable Pressure Fire Extinguishers
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

MODEL KCASSHQ-4-FE36 MODEL KCASSHQ-4-FE36
Capacity 4 kg Design Hose & Nozzle
Fire Rating 2A : 34B Fire Rating (As per EN) 8A : 34B
Height (Approx.) 500 mm Approx Diameter (Approx.) 140±5 mm
Effective Discharge Time 14 Sec Average Range of throw 3.5 m
Average % Discharge 96% Operating Temperature -30°C to +60°C
Service/Max. service/Test Pressure 10 / 12 / 35 bar Expelling Agent Nitrogen (UHP Grade)
Full Weight (Approx.) 6.5 kg Empty Weight (Approx.) 2.5 kg
Shipping Weight (Approx.) 6.9 kg Packing Standard Corrugated Box
Mounting Bracket Wall Bracket Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

MODEL KCASSHQ-6-FE36 MODEL KCASSHQ-6-FE36
Capacity 6 kg Design Hose & Nozzle
Fire Rating 2A : 55B Fire Rating (As per EN) 8A : 55B
Height (Approx.) 550 mm Approx Diameter (Approx.) 150±5 mm
Effective Discharge Time 22 Sec Average Range of throw 4 m
Average % Discharge 96% Operating Temperature -30 °C to +60°C
Service/Max. service/Test Pressure 10 / 12 / 35 bar Expelling Agent Nitrogen (UHP Grade)
Full Weight (Approx.) 8.8 kg Empty Weight (Approx.) 2.8 kg
Shipping Weight (Approx.) 9.3 kg Packing Standard Corrugated Box
Mounting Bracket Wall Bracket Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure
