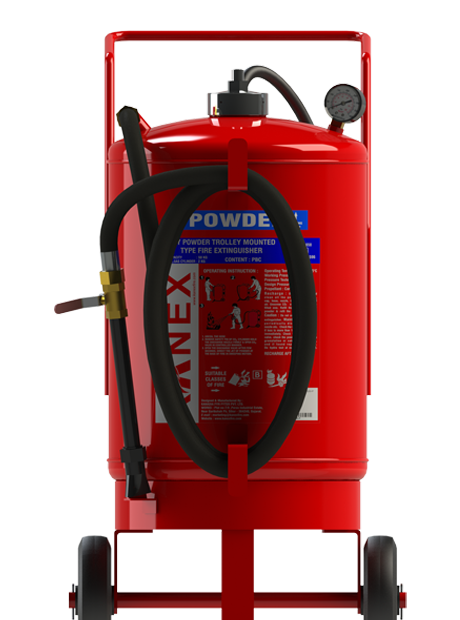

ABC DRY POWDER PBC TROLLEY MOUNTED fire extinguishers are characterized by their high performance, simple method of operation and rapid fire knock down capability. They are suitable for tackling fires involving freely burning materials, petrol & oils, gas & electrical equipment. KANEX powder extinguishers contain high performance powder to achieve high Fire Rating.
| MODEL | KFDRQ-25-P | MODEL | KFDRQ-25-P |
|---|---|---|---|
| Capacity | 25 kg | Service/Max. service/Test Pressure | 15 / 18 / 35 bar |
| Design | Hose & Nozzle | Expelling Agent | Co2 |
| Fire Rating | 233B | Co2 cylinder | 1kg |
| Height (Approx.) | 980 mm | Full Weight (Approx.) | 84 kg |
| Diameter (Approx.) | 300±10 mm | Empty Weight (Approx.) | 59 kg |
| Average Discharge time | 32 Sec | Shipping Weight (Approx.) | 85 kg |
| Average Range of throw | 6 m | Operating Temperature | -30 °C to +55 °C |
| Average % Discharge | 90% | Approvals | BIS |
| MODEL | KFDRQ-50-P | MODEL | KFDRQ-50-P |
|---|---|---|---|
| Capacity | 50 kg | Service/Max. service/Test Pressure | 15 / 18 / 35 bar |
| Design | Hose & Nozzle | Expelling Agent | Co2 |
| Fire Rating | 233B | Co2 cylinder | 2 kg |
| Height (Approx.) | 1020 mm | Full Weight (Approx.) | 120 kg |
| Diameter (Approx.) | 400±10 mm | Empty Weight (Approx.) | 70 kg |
| Average Discharge time | 40 Sec | Shipping Weight (Approx.) | 122 kg |
| Average Range of throw | 7.5 m | Operating Temperature | -30 °C to +55 °C |
| Average % Discharge | 92.5% | Approvals | BIS |
| MODEL | KFDRQ-75-P | MODEL | KFDRQ-75-P |
|---|---|---|---|
| Capacity | 75 kg | Service/Max. service/Test Pressure | 15 / 18 / 35 bar |
| Design | Hose & Nozzle | Expelling Agent | Co2 |
| Fire Rating | 233B | Co2 cylinder | 2 kg |
| Height (Approx.) | 1030 mm | Full Weight (Approx.) | 150 kg |
| Diameter (Approx.) | 400 ±10 mm | Empty Weight (Approx.) | 75 kg |
| Average Discharge time | 51 Sec | Shipping Weight (Approx.) | 152.5 kg |
| Average Range of throw | 8 m | Operating Temperature | -30 °C to +55 °C |
| Average % Discharge | 93.5% | Approvals | BIS |
