BC Powder Fire Extinguishers

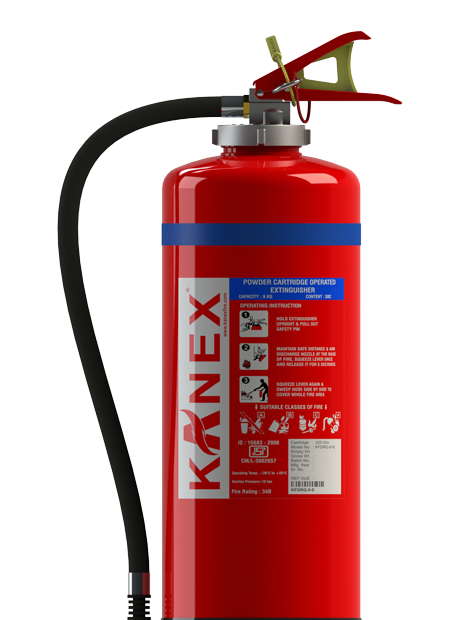

DCP SBC Based Portable Cartridge Operated Fire Extinguishers (RQ Series)

KANEX Dry Chemical Powder Cartridge Operated Fire Extinguishers are specially designed for high performance and to achieve rapid Fire knock down capability. Cartridge-operated means increased reliability, on-the-spot recharge, ease of service, and superior performance. These portable extinguishers are suited for industrial, commercial and Domestic Fire protection needs.

Available in Kg

These extinguishers contain a siliconized sodium bicarbonate based dry chemical with free flowing and non-caking additives. It is very economical, Class B & C protection with lower initial cost and recharging. This chemical smothers fires in flammable liquids and pressurized gases.

APPLICATION AREA

Special Features

Good quality SBC powder capable of fighting class B,C & Electrical fires
Co2 gas cylinder confirms to IS: 4947.
Brass chrome plated valve
Internally Epoxy polyester and externally pure polyester powder coating
Best available Fire ratings in its class.
Latest BIS approved – (IS 15683:2006) and ISI marked.
More flexible EPDM hose with less prone to cracks.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.

TECHNICAL SPECIFICATIONS

MODEL KFDRQ-4-S MODEL KFDRQ-4-S
Capacity 4 kg Design Hose & Nozzle
Fire Rating 183B Height (Approx.) 510 mm
Diameter (Approx.) 140±10 mm Average Discharge time 15 Sec.
Average Range of throw 4 m Average % Discharge 95%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Co2 gas Co2 gas cartridge 120 gm
Full Weight (Approx.) 8 kg Empty Weight (Approx.) 4 kg
Shipping Weight (Approx.) 8.3 kg Packing Standard 2 in 1- 21"X6.75"X14.10”
Mounting Bracket Wall bracket Approvals BIS
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KFDRQ-6-S MODEL KFDRQ-6-S
Capacity 6 kg Design Hose & Nozzle
Fire Rating 183B Height (Approx.) 540 mm
Diameter (Approx.) 150±10 mm Average Discharge time 20 Sec.
Average Range of throw 4.5 m Average % Discharge 95%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Co2 gas Co2 gas cartridge 120 gm
Full Weight (Approx.) 10.3 kg Empty Weight (Approx.) 4.3 kg
Shipping Weight (Approx.) 10.6 kg Packing Standard 2 in 1- 22.5"X6.75"X14.10”
Mounting Bracket Wall bracket Approvals BIS
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KFDRQ-9-S MODEL KFDRQ-9-S
Capacity 9 kg Design Hose & Nozzle
Fire Rating 233B Height (Approx.) 585 mm
Diameter (Approx.) 180±10 mm Average Discharge time 30 Sec.
Average Range of throw 5 m Average % Discharge 95%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Co2 gas Co2 gas cartridge 200 gm
Full Weight (Approx.) 15.3 kg Empty Weight (Approx.) 6.3 kg
Shipping Weight (Approx.) 15.8 kg Packing Standard 2 in 1 - 24.5"X15.3.0"X8.0"
Mounting Bracket Wall bracket Approvals BIS
