BC Powder Fire Extinguishers

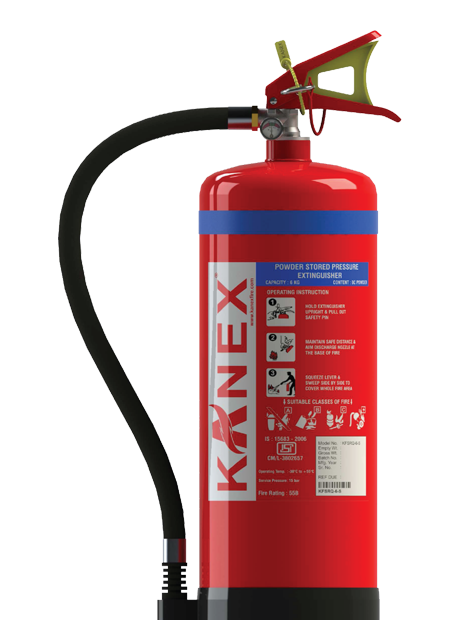

DCP SBC Based Portable Stored Pressure Fire Extinguishers (RQ Series)

KANEX Dry Chemical Powder stored Fire Extinguishers are specially designed for high performance and to achieve rapid Fire knock down capability.. These portable extinguishers are suited for industrial, commercial and Domestic Fire protection needs.

Available in Kg
Buy on Amazon

These extinguishers contain a siliconized sodium bicarbonate based dry chemical with free flowing and non-caking additives. It is very economical, Class B & C protection with lower initial cost and recharging. This chemical smothers fires in flammable liquids and pressurized gases.

APPLICATION AREA

Special Features

Good quality SBC powder as per IS 4308 capable of fighting class B,C & Electrical fires
Unique gauge testing system (UGTS) mechanism
Brass chrome plated valve
Internally Epoxy polyester and externally pure polyester powder coating
Best available Fire ratings in its class.
Latest BIS approved – (IS 15683:2006) and ISI marked.
More flexible EPDM hose with less prone to cracks.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.

TECHNICAL SPECIFICATIONS

MODEL KFARQ-4-S MODEL KFARQ-4-S
Capacity 4 kg Design Hose & Nozzle
Fire Rating 21B Height (Approx.) 490 mm
Diameter (Approx.) 140±10 mm Average Discharge time 18 Sec.
Average Range of throw 3 m Average % Discharge 95%
Operating Temperature -30 °C to +55 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 6.6 kg
Empty Weight (Approx.) 2.6 kg Shipping Weight (Approx.) 7.0 kg
Packing Standard 2 in 1- 21"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals -
DCP SBC Based Portable Pressure Fire Extinguishers
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

Spare Parts Book

MSDS

MODEL KFARQ-6-S MODEL KFARQ-6-S
Capacity 6 kg Design Hose & Nozzle
Fire Rating 183B Height (Approx.) 530 mm
Diameter (Approx.) 150±10 mm Average Discharge time 24 Sec.
Average Range of throw 4 m Average % Discharge 95%
Operating Temperature -30 °C to +55 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 8.9 kg
Empty Weight (Approx.) 2.9 kg Shipping Weight (Approx.) 9.2 kg
Packing Standard 2 in 1- 21"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals BIS
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KFARQ-9-S MODEL KFARQ-9-S
Capacity 9 kg Design Hose & Nozzle
Fire Rating 233B Height (Approx.) 575 mm
Diameter (Approx.) 180±10 mm Average Discharge time 31 Sec.
Average Range of throw 5 m Average % Discharge 95%
Operating Temperature -30 °C to +55 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 13.3 kg
Empty Weight (Approx.) 4.3 kg Shipping Weight (Approx.) 13.6 kg
Packing Standard 1 in 1 - 24.5"X8.0"X8.0" Mounting Bracket Wall bracket
Approvals BIS
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

Enquiry
