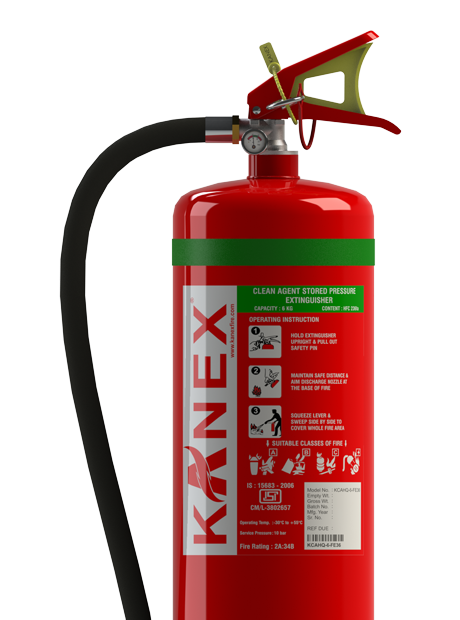

Clean Agent Fire Extinguishers

High Quality FE 36 Based Portable Stored Pressure Fire Extinguishers

KANEX Chemours FE 36 Clean Agent Stored Pressure Fire Extinguishers are environmentally safe and ideal for protecting delicate electronic equipment as the clean agent leaves no residue and also intended for the protection of facilities typically, the areas that contain sensitive or irreplaceable equipment or collections which could be damaged or destroyed by water, foam, dry chemical, or carbon dioxide.

Available in Kg
Buy on Amazon

APPLICATION AREA

Special Features

Chemours make UL Listed FE 36 Clean Agent Gas with Zero ODP
Unique gauge testing system (UGTS) mechanism
CE marked , brass chrome plated valve
Internally Epoxy polyester and externally pure polyester powder coating
Best available Fire ratings in its class.
Helium Leak detection tested for leakage, leak rate upto 1X10-8 mbar.l/sec.
Welding Procedure approved by TPI with 6G.
Latest BIS approved – (IS 15683:2006), ISI marked and CE marked.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
More flexible EPDM hose.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.
Best available Fire ratings in its class with 5 years warranty.

TECHNICAL SPECIFICATIONS

MODEL KCAHQ-2-FE36 MODEL KCAHQ-2-FE36
Capacity 2 kg Design Nozzle
Fire Rating 1A:21B Height (Approx.) 380 mm
Diameter (Approx.) 106±10 mm Average Discharge time 14 Sec.
Average Range of throw 2 m Average % Discharge 95%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 3.4 kg
Empty Weight (Approx.) 1.4 kg Shipping Weight (Approx.) 3.6 kg
Packing Standard Inner- 13.75"X4.75"X4.75” Outer (4 in 1)- 16.5"X10"X10” Mounting Bracket Wall bracket
Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KCAHQ-4-FE36 MODEL KCAHQ-4-FE36
Capacity 4 kg Design Hose & Nozzle
Fire Rating 2A:34B Height (Approx.) 490 mm
Diameter (Approx.) 140±10 mm Average Discharge time 18 Sec.
Average Range of throw 3 m Average % Discharge 95%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 6.6 kg
Empty Weight (Approx.) 2.6 kg Shipping Weight (Approx.) 7.0 kg
Packing Standard 2 in 1- 21"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KCAHQ-6-FE36 MODEL KCAHQ-6-FE36
Capacity 6 kg Design Hose & Nozzle
Fire Rating 2A:55B Height (Approx.) 530 mm
Diameter (Approx.) 150±10 mm Average Discharge time 24 Sec.
Average Range of throw 5 m Average % Discharge 95%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 8.9 kg
Empty Weight (Approx.) 2.9 kg Shipping Weight (Approx.) 9.2 kg
Packing Standard 2 in 1- 21"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS
