Water & Foam Fire Extinguisher

High Quality Foam Based Stored Pressure Fire Extinguishers

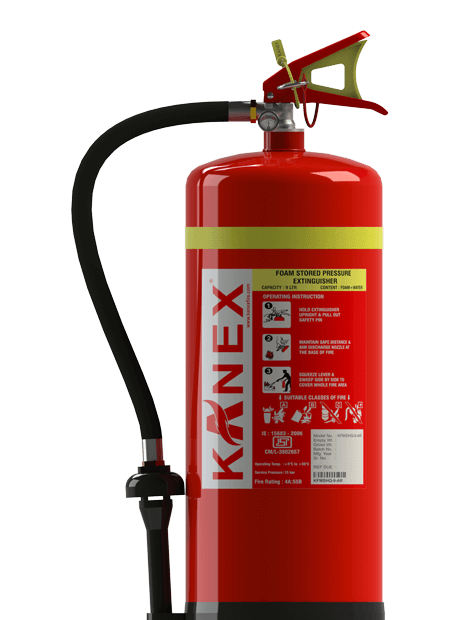

KANEX AFFF Foam Fire Extinguishers provide a fast, powerful means of tackling flammable liquids. The foam forms a seal over the surface to prevent re-ignition. Ideal for multi-risk usage and also applicable against Class ‘A’ hazards such as wood, cloth, trash, and other materials that leave an ash.

Available in Kg
Buy on Amazon

AFFF is Aqueous Film Forming Foam concentrate, produces thin, yet strong film on the surface of hydrocarbon fuels thereby sealing the fuel surface and preventing fuel vapor release. Due to presence of Fluorocarbon surfactant the spreading characteristic of the foam is such that a positive, fast spreading coverage action takes over the fuel surface, resulting fast extinguishment. The synthetic base imparts good shelf life of the concentrate free from settling ingredients and bad odor.

APPLICATION AREA

Special Features

High quality Synthetic based AFFF Foam.
Unique gauge testing system (UGTS) mechanism
CE marked , brass chrome plated valve
Plastic Lining done internally and externally pure polyester powder coating
Best available Fire ratings in its class with 5 years warranty.
Helium Leak detection tested for leakage, leak rate upto 1X10-8 mbar.l/sec.
Welding Procedure approved by TPI with 6G.
Latest BIS approved – (IS 15683:2006), ISI marked and CE marked.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
More flexible EPDM hose.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.

TECHNICAL SPECIFICATIONS

MODEL KFMSHQ-6-AR MODEL KFMSHQ-6-AR
Capacity 6 Ltr Design Hose & Nozzle
Fire Rating 2A:34B* Height (Approx.) 530 mm
Diameter (Approx.) 150±10 mm Average Discharge time 22 Sec.
Average Range of throw 5 m Average % Discharge 95%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 9.3 kg
Empty Weight (Approx.) 3.3 kg Shipping Weight (Approx.) 9.6 kg
Packing Standard 2 in 1- 22.5"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KFMSHQ-9-AR MODEL KFMSHQ-9-AR
Capacity 9 Ltr Design Hose & Nozzle
Fire Rating 4A:144B Height (Approx.) 575 mm
Diameter (Approx.) 180±10 mm Average Discharge time 31 Sec.
Average Range of throw 6 m Average % Discharge 95%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 14.0 kg
Empty Weight (Approx.) 5.0 kg Shipping Weight (Approx.) 14.5 kg
Packing Standard 2 in 1- 24.75"X8"X8” Mounting Bracket Wall bracket
Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS
