SPECIAL APPLICATION FIRE EXTINGUISHERS

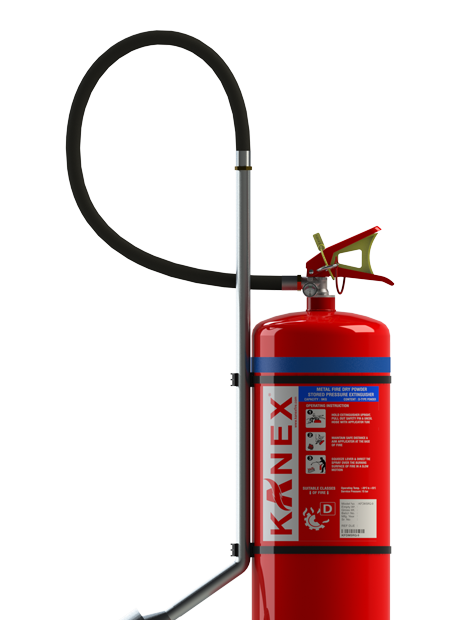

D Type Stored Pressure

Kanex D Class Metal Fire Extinguisher s are designed to tackle flammable metal fires because Ordinary dry chemical powders are not suitable for fighting metal fires or even water & foam type too as metals react violently with metals.

D type Fire Extinguishers contains a blended Sodium Chloride based dry powder extinguishing agent. Heat from the fire causes it to cake and form a crust excluding air and dissipating heat from burning metal.

Available in Kg
Buy Online Buy on Amazon

Metal fires involving magnesium, sodium, potassium and sodium-potassium alloys can be successfully extinguished with Sodium Chloride based extinguishers.

And Lithium, zirconium, uranium, titanium, and powdered aluminum fires can be controlled and extinguished with unique Special extinguisher with extinguishing agent as Ternary Eutactic Chloride (TEC).

Special Features

Sodium Chloride or Ternary Eutectic Chloride (TEC) based powders.
Unique gauge testing system (UGTS) mechanism
Controlled discharge through Brass nickel plated Valve with squeeze operation.
Internally Epoxy polyester and externally pure polyester powder coating
The specially designed applicator is particularly suited for fighting Class D fires. The design is such a way that the operator can stand away from extreme heat and toxic fumes. Other features are non dispersing agent and easily controlled.
Welding Procedure approved by TPI with 6G.
Latest CE marked.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
More flexible EPDM hose.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.

TECHNICAL SPECIFICATIONS

MODEL KFDMSRQ-4 MODEL KFDMSRQ-4
Capacity 4 kg Design Hose & Applicator
Height (Approx.) 490 mm Diameter (Approx.)t 140±10 mm
Average Discharge time 25 Sec. Average % Discharge 85%
Operating Temperature -30 °C to +55 °C Service/ Test Pressure 15 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 7.0 kg
Empty Weight (Approx.) 3.0 kg Shipping Weight (Approx.) 7.3 kg
Packing Standard 2 in 1- 21"X6.75"X14.10” Mounting Bracket Wall bracket
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFDMSRQ 4

MODEL KFDMSRQ-6 MODEL KFDMSRQ-6
Capacity 6 kg Design Hose & Applicator
Height (Approx.) 530 mm Diameter (Approx.)t 150±10 mm
Average Discharge time 30 Sec. Average % Discharge 85%
Operating Temperature -30 °C to +55 °C Service/ Test Pressure 15 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 9.0 kg
Empty Weight (Approx.) 3.3 kg Shipping Weight (Approx.) 9.6 kg
Packing Standard 2 in 1- 21"X6.75"X14.10” Mounting Bracket Wall bracket
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFDMSRQ 6

MODEL KFDMSRQ-9 MODEL KFDMSRQ-9
Capacity 9 kg Design Hose & Applicator
Height (Approx.) 575 mm Diameter (Approx.)t 180±10 mm
Average Discharge time 30 Sec. Average % Discharge 85%
Operating Temperature -30 °C to +55 °C Service/ Test Pressure 15 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 14.0 kg
Empty Weight (Approx.) 5.0 kg Shipping Weight (Approx.) 14.5 kg
Packing Standard 1 in 1- 24.5"X8.0"X8.0” Mounting Bracket Wall bracket
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFDMSRQ 9
