SPECIAL APPLICATION FIRE EXTINGUISHERS

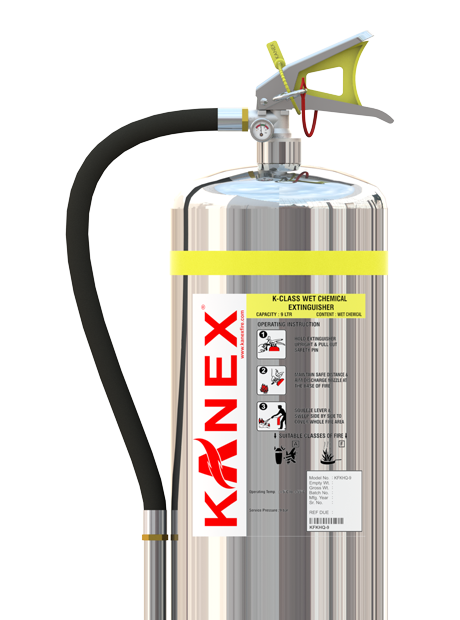

K Class Type

KANEX “K Class” Kitchen Fire Extinguishers are designed specially to fight against some of the toughest fires such as hot grease, cooking oil and fat fires in kitchen & food preparation areas.

Available in Kg
Buy Online Buy on Amazon

Class K Extinguishers work on the principle of saponification. Saponification takes place when alkaline mixture such as wet chemical (Mixture of potassium acetate, potassium citrate, or potassium carbonate) is applied to burning Oil or fat, the wet chemical combined with the fatty acid creates a soapy foam layer on the surface which holds in the vapors and steam and extinguishes the fire.


Why can’t we use Multipurpose ABC Fire Extinguishers rather Kitchen Fire Extinguishers (Wet Chemical)?

Changes in frying oils from animal fats to vegetable oils have reduced the ability of Multipurpose ABC Fire Extinguishers to extinguish many kitchen fires. As we know Vegetable oils have a much higher auto ignition temperature than animal fats because of this Heat breaks down the weaker foam layer created and re ignition takes place.

Kitchen Fire Extinguishers have the ability to maintain the foamy layer enough to allow complete cooling.

In addition, these wet chemical agents pose minimal damage threat to hot appliances.

APPLICATION AREA

Special Features

High quality Wet Chemical Agent.
Unique gauge testing system (UGTS) mechanism
Smooth & Polished Stainless Steel body Controlled discharge through Brass nickel plated Valve with squeeze operation.
Easy to maintain, recharge & service.
Latest CE marked.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Manufactured of durable high quality materials.
Large loop stainless Pull pin.
More flexible EPDM hose.
Lever lock for better handling.
Bar Code labeling for better traceability.
Discharge Nozzle is made up of Aluminum and Design allows a broad, dispersed discharge of agent that delivers a high volume low velocity delivery of wet chemical which doesn’t allow the burning Oil splash.

TECHNICAL SPECIFICATIONS

MODEL KFKHQ-2 MODEL KFKHQ-2
Capacity 2 Ltr Design Hose & Nozzle
Height (Approx.) 490 mm Diameter (Approx.)t 110±10 mm
Average Discharge time 10 Sec. Average % Discharge 95%
Operating Temperature +5 °C to +55 °C Service/ Test Pressure 9 / 15 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 3.7 kg
Empty Weight (Approx.) 1.7 kg Shipping Weight (Approx.) 4.0 kg
Packing Standard 2 in 1- 22.5"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFKHQ 2

MODEL KFKHQ-3 MODEL KFKHQ-3
Capacity 3 Ltr Design Hose & Nozzle
Height (Approx.) 500 mm Diameter (Approx.)t 140±10 mm
Average Discharge time 12 Sec. Average % Discharge 95%
Operating Temperature +5 °C to +55 °C Service/ Test Pressure 9 / 15 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 5.5 kg
Empty Weight (Approx.) 2.5 kg Shipping Weight (Approx.) 5.8 kg
Packing Standard 2 in 1- 22.5"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals CE Fire Rating 5F
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFKHQ 3

MODEL KFKHQ-6 MODEL KFKHQ-6
Capacity 6 Ltr Design Hose & Nozzle
Height (Approx.) 500 mm Diameter (Approx.)t 150±10 mm
Average Discharge time 20 Sec. Average % Discharge 95%
Operating Temperature +5 °C to +55 °C Service/ Test Pressure 9 / 15 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 8.9 kg
Empty Weight (Approx.) 2.9 kg Shipping Weight (Approx.) 9.3 kg
Packing Standard 2 in 1- 21"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals BIS Fire Rating 25F
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFKHQ 6

MODEL KFKHQ-9 MODEL KFKHQ-9
Capacity 9 Ltr Design Hose & Nozzle
Height (Approx.) 620 mm Diameter (Approx.)t 180±10 mm
Average Discharge time 30 Sec. Average % Discharge 95%
Operating Temperature +5 °C to +55 °C Service/ Test Pressure 9 / 15 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 13.5 kg
Empty Weight (Approx.) 4.5 kg Shipping Weight (Approx.) 14.0 kg
Packing Standard 1 in 1 - 24.5"X8.0"X8.0" Mounting Bracket Wall bracket
Approvals BIS
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFKHQ 9
