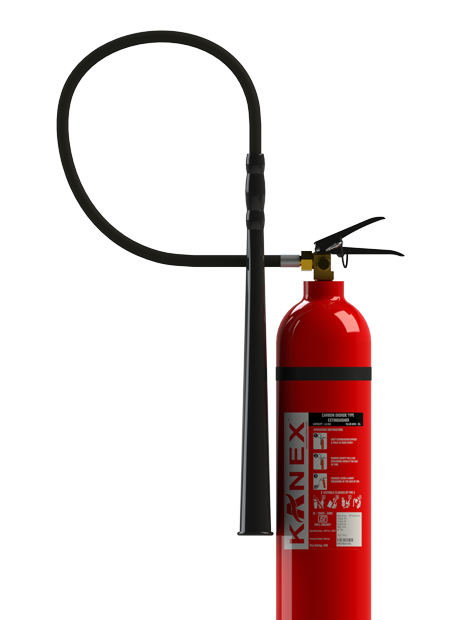

CO2 Based Fire Extinguishers

HIGH QUALITY STORED PRESSURE - AL

KANEX CO2 type Fire Extinguishers are environmentally safe and designed to suppress the fires where Class B, C and Electrically energized fires could occur. CO2 Extinguishers are advisable to use in Indoors where wind and drafts doesn’t affect discharge and where clean medium required which doesn’t leaves residue.

Advantages of having aluminum body fire extinguishers are lighter weight compared to manganese steel bodies and have longer life

Available in Kg
Buy on Amazon

APPLICATION AREA

Special Features

99.95% Pure Carbon Di Oxide gas.
Certifications: BIS Approved (IS 2878:2004) & CE certified.
Bodies CCOE/PESO approved.
High quality enamel paint.
Brass valve of squeeze/wheel type with pressure relief discs.
Trolleys with an ability to withstand high mechanical stress.
High strength Solid Rubber wheels.
Shells are Hydro tested to 250 bar.
High pressure Wire braided Hose.
Easy as well more economical to maintain & service.
Maximum visibility during Discharge.
No Electrical Conductivity Back to the operator.
No Thermal or Static Shock.
Best available Fire ratings in its class with 5 years warranty.

TECHNICAL SPECIFICATIONS

MODEL KFCHQ-2-AL MODEL KFCHQ-2-AL
Capacity 2 kg Design Bend pipe and Horn
Fire Rating 13 B Height (Approx.) 580 mm
Diameter (Approx.) 108±10 mm Average Discharge time 9 Sec.
Average Range of throw 2 m Average % Discharge 98%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 60 / 105 / 205 bar
Full Weight (Approx.) 6 kg Empty Weight (Approx.) 3.8 kg
Shipping Weight (Approx.) 6.5 kg Mounting Bracket Wall bracket
Approvals CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KFCHQ-4.5-AL MODEL KFCHQ-4.5-AL
Capacity 4.5 kg Design Hose and Horn
Fire Rating 55B Height (Approx.) 700 mm
Diameter (Approx.) 140±10 mm Average Discharge time 21 Sec.
Average Range of throw 2 m Average % Discharge 98%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 60 / 105 / 205 bar
Full Weight (Approx.) 12.3 kg Empty Weight (Approx.) 7.3 kg
Shipping Weight (Approx.) 12.8 kg Mounting Bracket Wall bracket
Approvals BIS & CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS
