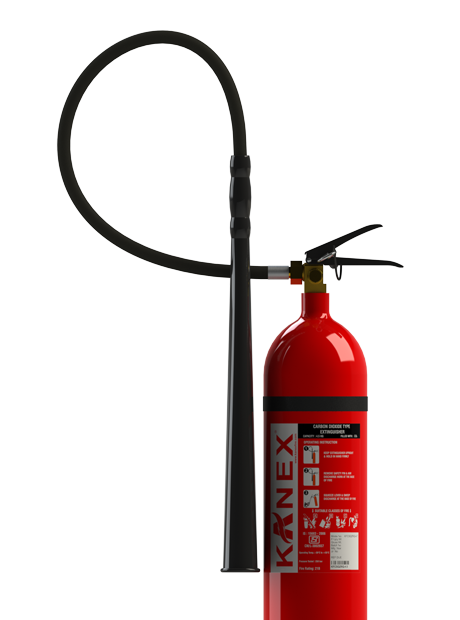

CO2 Based Fire Extinguishers

STORED PRESSURE Squeze type(RQ Series)

KANEX CO2 type Fire Extinguishers are environmentally safe and designed to suppress the fires where Class B, C and Electrically energized fires could occur. CO2 Extinguishers are advisable to use in Indoors where wind and drafts doesn’t affect discharge and where clean medium required which doesn’t leaves residue.

Available in Kg
Buy Online Buy on Amazon

Carbon Dioxide is discharged as a white cloud of “snow” which smothers a fire by eliminating oxygen. It is effective for Class B flammable liquids and is electrically non-conductive. Carbon Dioxide is a clean, non-contaminating, odorless gas.

APPLICATION AREA

Special Features

99.95% Pure Carbon Di Oxide gas.
Certifications: BIS Approved (IS 2878:2004) & CE certified.
Bodies CCOE/PESO approved.
High quality enamel paint.
Brass valve of squeeze type with pressure relief discs.
Shells are Hydro tested to 250 bar.
High pressure Wire braided Hose.
Easy as well more economical to maintain & service.
Maximum visibility during Discharge.
No Electrical Conductivity Back to the operator.
No Thermal or Static Shock.

TECHNICAL SPECIFICATIONS

MODEL KFCSQZRQ-2 MODEL KFCSQZRQ-2
Capacity 2 kg Design Bend pipe and Horn
Fire Rating 21B Height (Approx.) 580 mm
Diameter (Approx.) 108±10 mm Average Discharge time 9 Sec.
Average Range of throw 2 m Average % Discharge 98%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 60 / 105 / 205 bar
Full Weight (Approx.) 9.5 or 10.5 kg Empty Weight (Approx.) 7 or 8 kg
Shipping Weight (Approx.) 10 or 11 kg Mounting Bracket Wall bracket
Approvals BIS
CO2 Based Fire Extinguishers
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFCSQZRQ 2

Spare Parts Book

MSDS

MODEL KFCSQZRQ-3 MODEL KFCSQZRQ-3
Capacity 3 kg Design Bend pipe and Horn
Fire Rating 34B Height (Approx.) 545 mm
Diameter (Approx.) 140±10 mm Average Discharge time 11 Sec.
Average Range of throw 2 m Average % Discharge 98%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 60 / 105 / 205 bar
Full Weight (Approx.) 13 or 14 kg Empty Weight (Approx.) 9.5 or 10.5 kg
Shipping Weight (Approx.) 13.5 or 14.5 kg Mounting Bracket Wall bracket
Approvals BIS
CO2 Based Fire Extinguishers
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFCSQZRQ 3

Spare Parts Book

MSDS

MODEL KFCSQZRQ-4.5 MODEL KFCSQZRQ-4.5
Capacity 4.5 kg Design Hose and Horn
Fire Rating 55B Height (Approx.) 545 mm
Diameter (Approx.) 140±10 mm Average Discharge time 11 Sec.
Average Range of throw 2 m Average % Discharge 98%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 60 / 105 / 205 bar
Full Weight (Approx.) 18.5 or 13.5 kg Empty Weight (Approx.) 12.5 or 13.5 kg
Shipping Weight (Approx.) 19 or 20 kg Mounting Bracket Wall bracket
Approvals BIS
CO2 Based Fire Extinguishers
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFCSQZRQ 4.5

Spare Parts Book

MSDS
