Water & Foam Fire Extinguisher

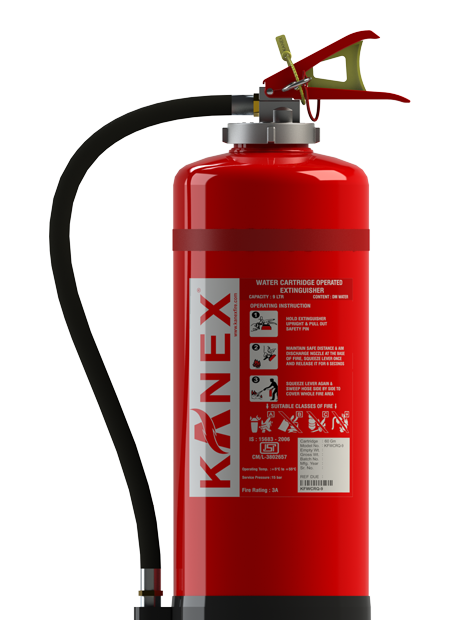

Water Based Cartridge Operated Fire Extinguishers (RQ Series)

KANEX Water Cartridge operated Fire Extinguishers are designed to suppress fires in Class A combustibles like wood, cloth, trash and other materials that leave an ash. These kinds of hazards are often found in office environments and some industrial locations, as well as warehouse and oxidizing chemical storage areas.

Available in Kg

APPLICATION AREA

Special Features

Co2 gas cylinder confirms to IS: 4947.
Brass chrome plated valve
Plastic Lining done internally and externally pure polyester powder coating
Best available Fire ratings in its class.
Latest BIS approved – (IS 15683:2006) and ISI marked.
More flexible EPDM hose with less prone to cracks.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.

TECHNICAL SPECIFICATIONS

MODEL KFWCRQ-6 MODEL KFWCRQ-6
Capacity 6 Ltr Design Hose & Nozzle
Fire Rating 2A* Height (Approx.) 540 mm
Diameter (Approx.) 150±10 mm Average Discharge time 22 Sec.
Average Range of throw 4 m Average % Discharge 95%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 14 / 16 / 35 bar
Expelling Agent Co2 gas Co2 gas cartridge 60 gm
Full Weight (Approx.) 10.0 kg Empty Weight (Approx.) 4.0 kg
Shipping Weight (Approx.) 10.3 kg Packing Standard 2 in 1- 22.5"X6.75"X14.10”
Mounting Bracket Wall bracket Approvals -
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KFWCRQ-9 MODEL KFWCRQ-9
Capacity 9 Ltr Design Hose & Nozzle
Fire Rating 3A Height (Approx.) 585 mm
Diameter (Approx.) 180±10 mm Average Discharge time 35 Sec.
Average Range of throw 6 m Average % Discharge 95%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 14 / 16 / 35 bar
Expelling Agent Co2 gas Co2 gas cartridge 60 gm
Full Weight (Approx.) 14.8 kg Empty Weight (Approx.) 5.8 kg
Shipping Weight (Approx.) 15.3 kg Packing Standard 1 in 1- 24.75"X8"X8”
Mounting Bracket Wall bracket Approvals BIS
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS
