Portable Watermist / CAFS system

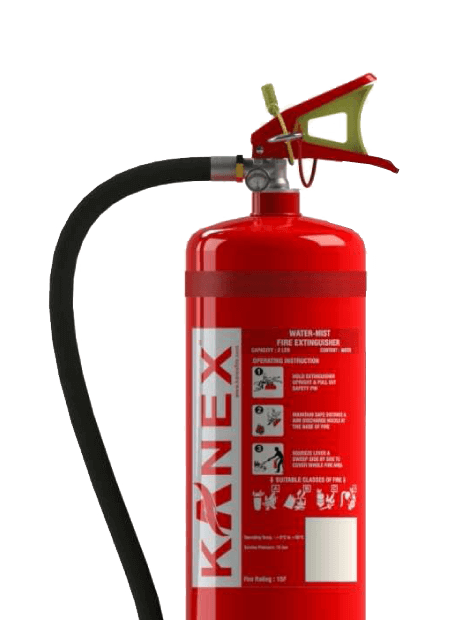

PORTABLE WATER-MIST STORED PRESSURE FIRE EXTINGUISHER

KANEX WATER-MIST STORED PRESSURE fire extinguishers provide a fast, power full means of tackling mostly all types of fires and replacing other types. The foam forms a seal over the surface to prevent re-ignition. Ideal for multi-risk usage and also applicable paper, wood, soft furnishing, electrical equipment such as computers and printers, small oil and fat fires, clothing and gas flames.

Available in Kg

APPLICATION AREA

Special Features

Welding Procedure (WPS) approved by TPI with 6G certification BIS Approved (IS 15683:2006), ISI marked and CE Certified
Special Nozzle produce over 22 billion water droplets from only 1 litre of water. These droplets are as small as 25 microns in diameter and create an ultra-fine mist which has superior fire-fighting capabilities.
CE marked, brass chrome plated valve with Controllable discharge mechanism and Large loop Stainless steel Pull pin EPDM Rubber braided hose is far more flexible than the PVC braided hose and also far less prone to cracks
Internally Plastic coated and Externally Pure Polyester (PP) powder coated (UV Resistant)
Unique Gauge Testing System (UGTS) mechanism
Hydraulically tested as per standard requirements
Anti-corrosive treatment: Semi Automatic Seven tank Hot dipping Phosphate treatment Process
Helium Leak Detection tested for leakage, leak rate up to 1x10 mbar.l/sec
Easy to maintain, recharge & service
AR-AFFF agent confirming IS:4989 (Part-II) capable of fighting against Class A and B fires

TECHNICAL SPECIFICATIONS

MODEL KFWMSHQ-2 MODEL KFWMSHQ-2
Capacity 2 Ltr Design Hose & special mist nozzle
Fire Rating 15F Height (Approx.) 490 mm
Diameter (Approx.) 140±10 mm Minimum Discharge time 8 Sec.
Minimum Range of throw 2 m Average % Discharge 90%
Operating Temperature +5 °C to +55 °C Service/Max. service/Test Pressure 15 / 17/ 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 5.0 kg
Empty Weight (Approx.) 3.0 kg Shipping Weight (Approx.) 5.5 kg
Packing Standard 2 in 1-22.5"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals CE/ERDA/Any govt approved Lab
DOWNLOAD TECHNICAL SPECIFICATIONS

GAD

KFW

MODEL KFWMSHQ-3 MODEL KFWMSHQ-3
Capacity 3 Ltr Design Hose & special mist nozzle
Fire Rating 5A:21B:25F Height (Approx.) 530 mm
Diameter (Approx.) 150±10 mm Minimum Discharge time 13 Sec.
Minimum Range of throw 2 m Average % Discharge 90%
Operating Temperature +5 °C to +55 °C Service/Max. service/Test Pressure 15 / 17/ 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 6.5 kg
Empty Weight (Approx.) 3.5 kg Shipping Weight (Approx.) 7.0 kg
Packing Standard 2 in 1-25"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals CE/ERDA/Any govt approved Lab
DOWNLOAD TECHNICAL SPECIFICATIONS

GTP

KFW

MODEL KFWMSHQ-4 MODEL KFWMSHQ-4
Capacity 4 Ltr Design Hose & special mist nozzle
Fire Rating 5A:21B:25F Height (Approx.) 530 mm
Diameter (Approx.) 150±10 mm Minimum Discharge time 13 Sec.
Minimum Range of throw 2 m Average % Discharge 90%
Operating Temperature +5 °C to +55 °C Service/Max. service/Test Pressure 15 / 17/ 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 7.5 kg
Empty Weight (Approx.) 3.5 kg Shipping Weight (Approx.) 8.0 kg
Packing Standard 2 in 1-25"X6.75"X14.10” Mounting Bracket Wall bracket
Approvals CE/ERDA/Any govt approved Lab
DOWNLOAD TECHNICAL SPECIFICATIONS

GTP

KFW

MODEL KFWMSHQ-6 MODEL KFWMSHQ-6
Capacity 6 Ltr Design Hose & special mist nozzle
Fire Rating 8A:34B:40F Height (Approx.) 575 mm
Diameter (Approx.) 180±10 mm Minimum Discharge time 13 Sec.
Minimum Range of throw 2 m Average % Discharge 90%
Operating Temperature +5 °C to +55 °C Service/Max. service/Test Pressure 15 / 17/ 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 11.0 kg
Empty Weight (Approx.) 5.0 kg Shipping Weight (Approx.) 11.5 kg
Packing Standard 1 in 1-25"X8.5"X8.5” Mounting Bracket Wall bracket
Approvals CE/ERDA/Any govt approved Lab
DOWNLOAD TECHNICAL SPECIFICATIONS

GTP

KFW

MODEL KFWMSHQ-9 MODEL KFWMSHQ-9
Capacity 9 Ltr Design Hose & special mist nozzle
Fire Rating 3A:114B:75F Height (Approx.) 640 mm
Diameter (Approx.) 190±10 mm Minimum Discharge time 13 Sec.
Minimum Range of throw 2 m Average % Discharge 95%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 15 / 18/ 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 14.8.0 kg
Empty Weight (Approx.) 5.0 kg Shipping Weight (Approx.) 15.5 kg
Mounting Bracket Wall bracket Approvals CE/ERDA/Any govt approved Lab
