SPECIAL APPLICATION FIRE EXTINGUISHERS

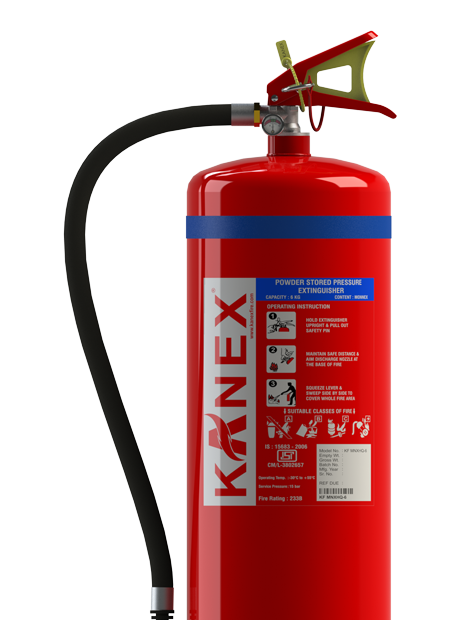

Monnex Type Stored Pressure

KANEX stored pressure Monnex Powder or Potassium bi carbonate Urea complex dry powder Fire Extinguishers are specially designed for high performance and to achieve rapid Fire knock down capability. These portable extinguishers are suited for industrial, commercial Fire protection needs.

These extinguishers contain Monnex Powder or Potassium bi carbonate Urea complex dry powder with free flowing and non-caking additives. It is very much effective against Class B & C protection. This chemical smothers fires in flammable liquids and pressurized gases.

APPLICATION AREA

Special Features

Monnex or potassium bi carbonate urea based BC powder
Unique gauge testing system (UGTS) mechanism
CE marked
Brass chrome plated valve
Internally Epoxy polyester and externally pure polyester powder coating
More flexible EPDM hose with less prone to cracks.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.

TECHNICAL SPECIFICATIONS

MODEL KFMNXSHQ-2 MODEL KFMNXSHQ-2
Capacity 2 kg / 1 kg Design Nozzle
Fire Rating 55B* Height (Approx.) 380 mm
Diameter (Approx.) 106±5 mm Average Discharge time 10 Sec.
Average Range of throw 3 m Average % Discharge 92%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 2.7 kg
Empty Weight (Approx.) 1.7 kg Shipping Weight (Approx.) 3.1 kg
Packing Standard Inner-13.75"*4.75"*4.75"
Outer(4 in 1)-16.5"*10"*10"
Mounting Bracket Wall bracket
Approvals CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

MODEL KFMNXSHQ-4 MODEL KFMNXSHQ-4
Capacity 4 kg / 2 kg Design Hose & Nozzle
Fire Rating 144B* Height (Approx.) 490 mm
Diameter (Approx.) 140±5 mm Average Discharge time 16 Sec.
Average Range of throw 5 m Average % Discharge 92%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 5.1 kg
Empty Weight (Approx.) 3.1 kg Shipping Weight (Approx.) 5.5 kg
Packing Standard 2 In 1-21"*6.75"*14.10" Mounting Bracket Wall bracket
Approvals CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

MODEL KFMNXSHQ-6 MODEL KFMNXSHQ-6
Capacity 6 kg / 4 kg Design Hose & Nozzle
Fire Rating 183B* Height (Approx.) 530 mm
Diameter (Approx.) 150±5 mm Average Discharge time 21 Sec.
Average Range of throw 6 m Average % Discharge 93%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 7.6 kg
Empty Weight (Approx.) 3.6 kg Shipping Weight (Approx.) 8.0 kg
Packing Standard 2 in 1-21"*6.75"*14.10" Mounting Bracket Wall bracket
Approvals CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

MODEL KFMNXSHQ-9 MODEL KFMNXSHQ-9
Capacity 9 kg / 6 kg Design Hose & Nozzle
Fire Rating 233B* Height (Approx.) 575 mm
Diameter (Approx.) 180±5 mm Average Discharge time 26 Sec.
Average Range of throw 6 m Average % Discharge 93%
Operating Temperature -30 °C to +60 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Nitrogen (UHP Grade) Full Weight (Approx.) 10.9 kg
Empty Weight (Approx.) 4.9 kg Shipping Weight (Approx.) 11.4 kg
Packing Standard 1 in 1-24.5"*8.0"*8.0" Mounting Bracket Wall bracket
Approvals CE
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure
