BC Powder Fire Extinguishers

DCP SBC Based Mobile Fire Extinguishers

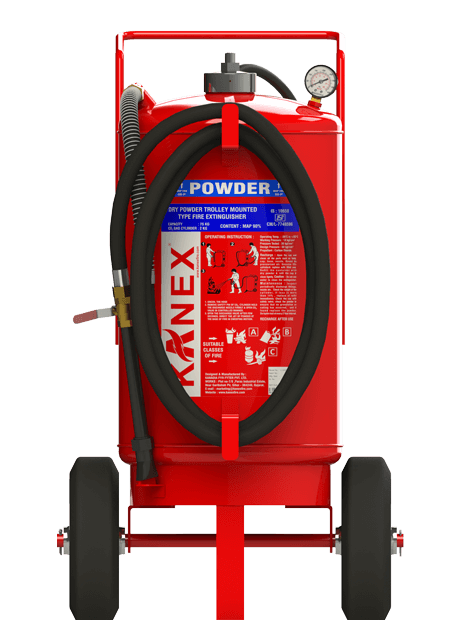

ABC DRY POWDER SBC TROLLEY MOUNTED fire extinguishers are characterized by their high performance, simple method of operation and rapid fire knock down capability. They are suitable for tackling fires involving freely burning materials, petrol & oils, gas & electrical equipment. KANEX powder extinguishers contain high performance powder to achieve high Fire Rating.

Available in Kg
Buy on Amazon

APPLICATION AREA

Special Features

l BIS Approved and ISI marked
l Hydraulically tested as per standard and passed through anti-corrosive treatment
l High quality Pure Polyester (PP) powder coating (UV Resistant)
l Brass caps, drain plugs, ball valve conforms to IS:319
l Aluminum alloy nozzle conforms to IS:617
l Controllable discharge
l Easy to maintain, recharge & service
l PVC braided discharge hose
l Conformity to IS 16018:2012
l Sodium bicarbonate based dry chemical powder confronts to IS 4308 capable of fighting against class B, C & Electrically started fires.

TECHNICAL SPECIFICATIONS

MODEL KFDRQ-25-S MODEL KFDRQ-25-S
Capacity 25 kg Design Hose & Nozzle
Fire Rating (MAP 50%) 233B Height (Approx.) 980 mm
Diameter (Approx.) 300±10 mm Average Discharge time 32 Sec.
Average Range of throw 6 m Average % Discharge 90%
Operating Temperature -30 °C to +55 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Co2 Co2 cylinder 1 kg
Full Weight (Approx.) 84 kg Empty Weight (Approx.) 59 kg
Shipping Weight (Approx.) 85 kg Approvals BIS
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

KFD

Spare Parts Book

MSDS

MODEL KFDRQ-50-S MODEL KFDRQ-50-S
Capacity 50 kg Design Hose & Nozzle
Fire Rating (MAP 50%) 233B Height (Approx.) 1020 mm
Diameter (Approx.) 400 ±10 mm Average Discharge time 40 Sec.
Average Range of throw 7.5 m Average % Discharge 92.5%
Operating Temperature -30 °C to +55 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Co2 Co2 cylinder 2 kg
Full Weight (Approx.) 120 kg Empty Weight (Approx.) 70 kg
Shipping Weight (Approx.) 122 kg Approvals BIS
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

KFD

Spare Parts Book

MSDS

MODEL KFDRQ-75-S MODEL KFDRQ-75-S
Capacity 75 kg Design Hose & Nozzle
Fire Rating (MAP 50%) 233B Height (Approx.) 1030 mm
Diameter (Approx.) 400 ± 10 mm Average Discharge time 51 Sec.
Average Range of throw 8 m Average % Discharge 93.5%
Operating Temperature -30 °C to +55 °C Service/Max. service/Test Pressure 15 / 18 / 35 bar
Expelling Agent Co2 Co2 cylinder 2 kg
Full Weight (Approx.) 150 kg Empty Weight (Approx.) 75 kg
Shipping Weight (Approx.) 152.5 kg Approvals BIS
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

KFD

Spare Parts Book

MSDS
