Water & Foam Fire Extinguisher

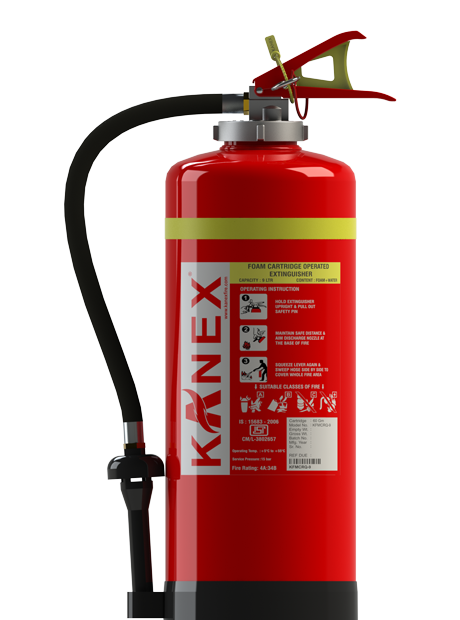

Foam Based Cartridge Operated Fire Extinguishers (RQ Series)

KANEX AFFF Foam Cartridge operated Fire Extinguishers provide a fast, powerful means of tackling flammable liquids. The foam forms a seal over the surface to prevent re-ignition. Ideal for multi-risk usage and also applicable against Class ‘A’ hazards such as wood, cloth, trash, and other materials that leave an ash.

Available in Kg
Buy on Amazon

AFFF is Aqueous Film Forming Foam concentrate, produces thin, yet strong film on the surface of hydrocarbon fuels thereby sealing the fuel surface and preventing fuel vapor release. Due to presence of Fluorocarbon surfactant the spreading characteristic of the foam is such that a positive, fast spreading coverage action takes over the fuel surface, resulting fast extinguishment. The synthetic base imparts good shelf life of the concentrate free from settling ingredients and bad odor.

APPLICATION AREA

Special Features

High quality Synthetic based AFFF Foam.
Co2 gas cylinder confirms to IS: 4947.
Brass chrome plated valve
Plastic Lining done internally and externally pure polyester powder coating
Best available Fire ratings in its class.
Latest BIS approved – (IS 15683:2006) and ISI marked.
More flexible EPDM hose with less prone to cracks.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.

TECHNICAL SPECIFICATIONS

MODEL KFMCRQ-6 MODEL KFMCRQ-6
Capacity 6 Ltr Design Hose & Nozzle
Fire Rating 2A:34B* Height (Approx.) 540 mm
Diameter (Approx.) 150±10 mm Average Discharge time 22 Sec.
Average Range of throw 4 m Average % Discharge 95%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 14 / 16 / 35 bar
Expelling Agent Co2 gas Co2 gas cartridge 60 gm
Full Weight (Approx.) 10.0 kg Empty Weight (Approx.) 4.0 kg
Shipping Weight (Approx.) 10.3 kg Packing Standard 2 in 1- 22.5"X6.75"X14.10”
Mounting Bracket Wall bracket Approvals -
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS

MODEL KFMCRQ-9 MODEL KFMCRQ-9
Capacity 9 Ltr Design Hose & Nozzle
Fire Rating 4A:144B Height (Approx.) 585 mm
Diameter (Approx.) 180±10 mm Average Discharge time 35 Sec.
Average Range of throw 6 m Average % Discharge 95%
Operating Temperature +5 °C to +60 °C Service/Max. service/Test Pressure 14 / 16 / 35 bar
Expelling Agent Co2 gas Co2 gas cartridge 60 gm
Full Weight (Approx.) 14.8 kg Empty Weight (Approx.) 5.8 kg
Shipping Weight (Approx.) 15.3 kg Packing Standard 1 in 1- 24.75"X8"X8”
Mounting Bracket Wall bracket Approvals BIS
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GAD

GTP

Spare Parts Book

MSDS
